DIN 1869

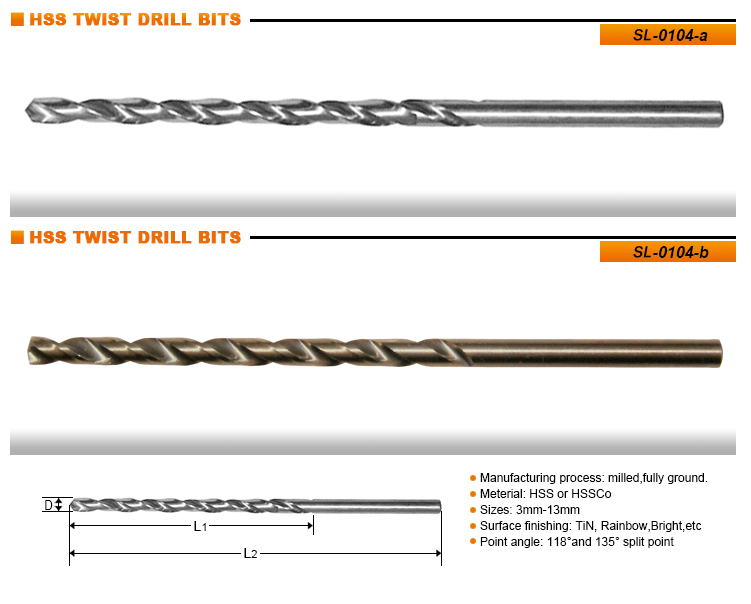

Diameter	Flute Length	Overall Length	Item No.
D	L1	L2	Item No.
3	130	190	SL0104030190
3.5	145	210	SL0104350210
4	150	220	SL0104040220
4.5	160	235	SL0104450235
5	170	245	SL0104050245
5.5	180	260	SL0104550260
6	180	260	SL0104060260
6.5	190	275	SL0104650275
7	200	290	SL0104070290
7.5	200	290	SL0104750290
8	210	305	SL0104080305
8.5	210	305	SL0104850305
9	220	320	SL0104090320
9.5	220	320	SL0104950320
10	235	340	SL0104100340
10.5	235	340	SL0104105340
11	250	365	SL0104110365
11.5	250	365	SL0104115365
12	260	375	SL0104120375
12.5	260	375	SL0104125375
13	260	375	SL0104130375

Diameter	Flute Length	Overall Length	Item No.
D	L1	L2	Item No.
3.5	180	265	SL0104350265
4	190	280	SL0104040280
4.5	200	295	SL0104450295
5	210	315	SL0104050315
5.5	225	330	SL0104550330
6	225	330	SL0104060330
6.5	235	350	SL0104650350
7	250	370	SL0104070370
7.5	250	370	SL0104750370
8	265	390	SL0104080390
8.5	265	390	SL0104850390
9	280	410	SL0104090410
9.5	280	410	SL0104950410
10	295	430	SL0104100430
10.5	295	430	SL0104105430
11	310	455	SL0104110455
11.5	310	455	SL0104115455
12	330	480	SL0104120480
12.5	330	480	SL0104125480
13	330	480	SL0104130480

Diameter	Flute Length	Overall Length	Item No.
D	L1	L2	Item No.
2	85	125	SL0104020125
2.5	95	140	SL0104250140
3	100	150	SL0104030150
3.5	115	165	SL0104350165
4	120	175	SL0104040175
4.5	125	185	SL0104450185
5	135	195	SL0104050195
5.5	140	205	SL0104550205
6	140	205	SL0104060205
6.5	150	215	SL0104650215
7	155	225	SL0104070225
7.5	155	225	SL0104750225
8	165	240	SL0104080240
8.5	165	240	SL0104850240
9	175	250	SL0104090250
9.5	175	250	SL0104950250
10	185	265	SL0104100265
10.5	185	265	SL0104105265
11	195	280	SL0104110280
11.5	195	280	SL0104115280
12	205	295	SL0104120295
12.5	205	295	SL0104125295
13	205	295	SL0104130295
