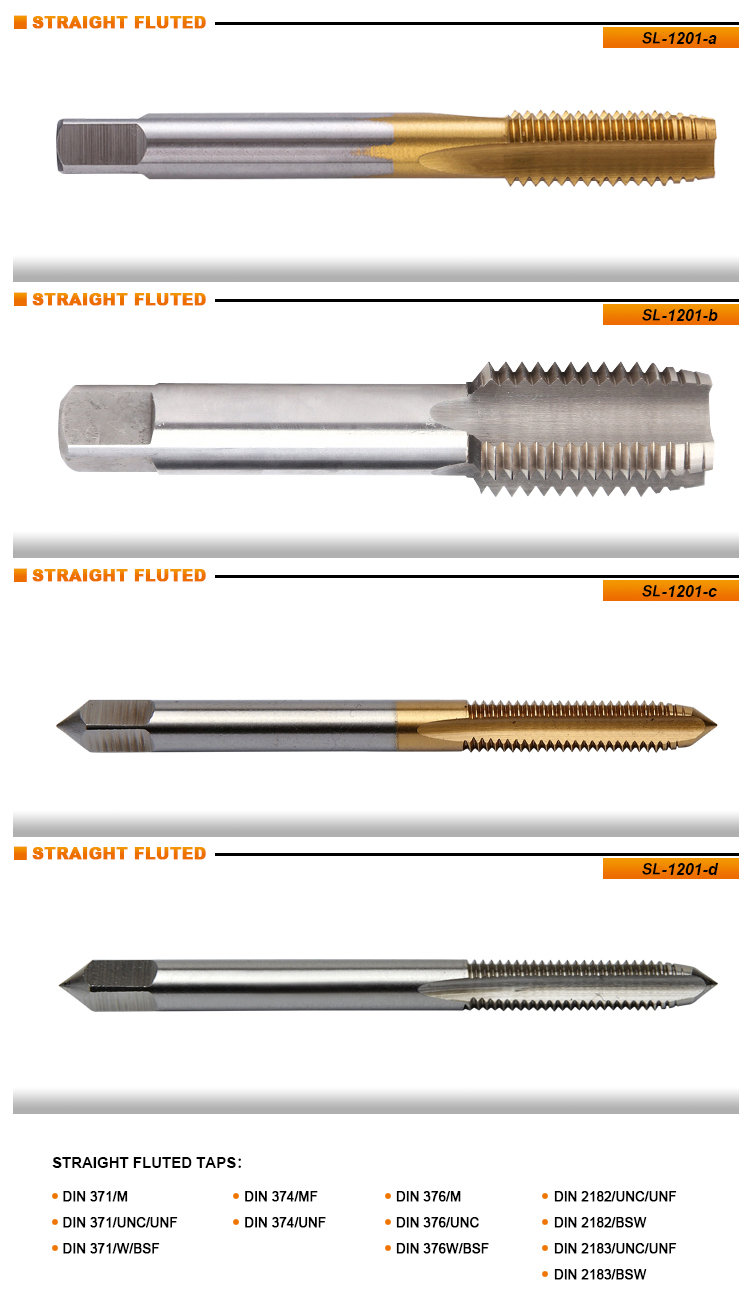

Straight Flute Taps
■DIN371/M  MACHINE TAPS—High Speed Steel
Size Overall Length Flute Length Item No.
M1.4 x 0.3 40 7 SL1201000001
M1.6 x 0.35 40 8 SL1201000002
M1.7 x 0.35 40 8 SL1201000003
M1.8 x 0.35 40 8 SL1201000004
M2 x 0.4 45 8 SL1201000005
M2.2 x 0.45 45 9 SL1201000006
M2.3 x 0.4 45 9 SL1201000007
M2.5 x 0.45 50 9 SL1201000008
M2.6 x 0.45 50 9 SL1201000009
M3 x 0.5 56 11 SL1201000010
M3.5 x 0.6 56 13 SL1201000011
M4 x 0.7 63 13 SL1201000012
M5 x 0.8 70 16 SL1201000013
M6 x 1 80 19 SL1201000014
M7 x 1 80 19 SL1201000015
M8 x 1.25 90 22 SL1201000016
M9 x 1.25 90 22 SL1201000017
M10 x 1.5 100 24 SL1201000018
■DIN371/W/BSF  MACHINE TAPS —High Speed Steel
Size Overall Length Flute Length Item No.
W1/16-60 40 8 SL1201000019
W3/32-48 50 9 SL1201000020
W1/8-40 56 11 SL1201000021
W5/32-32 63 13 SL1201000022
W3/16-24 70 15 SL1201000023
W7/32-24 80 16 SL1201000024
W1/4-20 80 17 SL1201000025
W5/16-18 90 20 SL1201000026
W3/8-16 100 22 SL1201000027
BSF3/16-32 70 15 SL1201000028
BSF1/4-26 80 17 SL1201000029
BSF5/16-22 90 20 SL1201000030
BSF3/8-20 100 22 SL1201000031
■DIN371/UNC/UNF  MACHINE TAPS—High Speed Steel
Size Overall Length Flute Length Item No.
No.1-64UNC 40 8 SL1201000032
No.2-56UNC 45 9 SL1201000033
No.3-48UNC 50 9 SL1201000034
No.4-40UNC 56 11 SL1201000035
No.5-40UNC 56 11 SL1201000036
No.6-32UNC 56 12 SL1201000037
No.8-32UNC 63 13 SL1201000038
No.10-24UNC 70 15 SL1201000039
No.12-24UNC 80 16 SL1201000040
1/4-20UNC 80 17 SL1201000041
5/16-18UNC 90 20 SL1201000042
3/8-16UNC 100 22 SL1201000043
No.0-80UNF 40 8 SL1201000044
No.1-72UNF 40 8 SL1201000045
No.2-64UNF 45 9 SL1201000046
No.3-56UNF 50 9 SL1201000047
No.4-48UNF 56 11 SL1201000048
No.5-44UNF 56 11 SL1201000049
No.6-40UNF 56 12 SL1201000050
No.8-36UNF 63 13 SL1201000051
No.10-32UNF 70 15 SL1201000052
No.12-28UNF 80 16 SL1201000053
1/4-28UNF 80 17 SL1201000054
5/16-24UNF 90 20 SL1201000055
3/8-24UNF 100 22 SL1201000056
  ■DIN374/MF  MACHINE TAPS—High Speed Steel
Size Overall Length Thread Length Item No.
M3x0.35 56 10 SL1201000057
M3.5x0.35 56 10 SL1201000058
M4x0.35 63 10 SL1201000059
M4x0.5 63 10 SL1201000060
M5x0.5 70 12 SL1201000061
M6x0.5 80 14 SL1201000062
M6x0.75 80 14 SL1201000063
M7x0.75 80 14 SL1201000064
M8x0.5 80 19 SL1201000065
M8x0.75 80 19 SL1201000066
M8x1 90 22 SL1201000067
M9x1 90 22 SL1201000068
M10x0.5 90 20 SL1201000069
M10x0.75 100 20 SL1201000070
M10x1 90 20 SL1201000071
M10x1.25 90 24 SL1201000072
M11x1 100 20 SL1201000073
M11x1.25 100 20 SL1201000074
M12x0.75 100 22 SL1201000075
M12x1 100 22 SL1201000076
M12x1.25 100 22 SL1201000077
M12x1.5 100 22 SL1201000078
M13x1 100 22 SL1201000079
M13x1.5 100 22 SL1201000080
M14x0.75 100 22 SL1201000081
M14x1 100 22 SL1201000082
M14x1.25 100 22 SL1201000083
M14x1.5 100 22 SL1201000084
M16x1 100 22 SL1201000085
M16x1.25 100 22 SL1201000086
M16x1.5 100 22 SL1201000087
M18x1 110 25 SL1201000088
M18x1.5 110 25 SL1201000089
M18x2 125 34 SL1201000090
M20x1 125 25 SL1201000091
M20x1.5 125 25 SL1201000092
M20x2 140 34 SL1201000093
M22x1 125 25 SL1201000094
M22x1.5 125 25 SL1201000095
M22x2 140 34 SL1201000096
M24x1 140 28 SL1201000097
M24x1.5 140 28 SL1201000098
M24x2 140 28 SL1201000099
M26x1.5 140 28 SL1201000100
M27x2 140 28 SL1201000101
M28x1.5 140 28 SL1201000102
M30x1.5 150 28 SL1201000103
M30x2 150 28 SL1201000104
M32x1.5 150 28 SL1201000105
M35x1.5 170 30 SL1201000106
M36x1.5 170 30 SL1201000107
M38x1.5 170 30 SL1201000108
M40x1.5 170 30 SL1201000109
M42x1.5 170 30 SL1201000110
M45x1.5 180 32 SL1201000111
M48x1.5 190 32 SL1201000112
M50x1.5 190 32 SL1201000113
M52x1.5 190 32 SL1201000114
  ■DIN374/UNF  MACHINE TAPS—High Speed Steel
Size Overall Length Thread Length Item No.
1/4-28UNF 80 17 SL1201000115
5/16-24UNF 90 20 SL1201000116
3/8-24UNF 90 16 SL1201000117
7/16-20UNF 100 22 SL1201000118
1/2-20UNF 100 22 SL1201000119
9/16-18UNF 100 22 SL1201000120
5/8-18UNF 100 22 SL1201000121
3/4-16UNF 110 25 SL1201000122
7/8-14UNF 125 25 SL1201000123
1-12UNF 140 28 SL1201000124
1-1/8 - 12UNF 150 28 SL1201000125
1-1/4 - 12UNF 150 28 SL1201000126
1-3/8 - 12UNF 170 30 SL1201000127
1-1/2 - 12UNF 170 30 SL1201000128
  ■DIN2182/UNC/UNF  MACHINE TAPS—High Speed Steel
Size Overall Length Thread Length Item No.
1/4-20UNC 80 22 SL1201000129
1/4-28UNF 80 22 SL1201000130
5/16-18UNC 90 25 SL1201000131
5/16-24UNF 90 25 SL1201000132
3/8-16UNC 100 28 SL1201000133
3/8-24UNF 100 28 SL1201000134
  ■DIN2182/BSW  MACHINE TAPS—High Speed Steel
Size Overall Length Thread Length Item No.
1/8-40BSW 56 16 SL1201000135
5/32-32BSW 63 18 SL1201000136
3/16-24BSW 70 20 SL1201000137
7/32-24BSW 80 20 SL1201000138
1/4-20BSW 80 22 SL1201000139
5/16-18BSW 90 25 SL1201000140
3/8-16BSW 100 28 SL1201000141
  ■DIN2183/UNC/UNF  MACHINE TAPS—High Speed Steel
Size Overall Length Thread Length Item No.
7/16-14UNC 100 28 SL1201000142
7/16-20UNF 100 28 SL1201000143
1/2-13UNC 110 32 SL1201000144
1/2-20UNF 110 32 SL1201000145
9/16-12UNC 110 32 SL1201000146
9/16-18UNF 110 32 SL1201000147
5/8-11UNC 110 32 SL1201000148
5/8-18UNF 110 32 SL1201000149
3/4-10UNC 125 36 SL1201000150
3/4-16UNF 125 36 SL1201000151
7/8-9UNC 140 40 SL1201000152
7/8-14UNF 140 40 SL1201000153
1-8UNC 160 45 SL1201000154
1-2UNF 160 45 SL1201000155
  ■DIN2183/BSW  MACHINE TAPS—High Speed Steel
Size Overall Length Thread Length Item No.
7/16-14BSW 100 28 SL1201000156
1/2-12BSW 110 32 SL1201000157
9/16-12BSW 110 32 SL1201000158
5/8-11BSW 110 32 SL1201000159
3/4-10BSW 125 36 SL1201000160
7/8-9BSW 140 40 SL1201000161
1-8BSW 160 45 SL1201000162
1-1/8-7BSW 180 50 SL1201000163
1-1/4-7BSW 180 50 SL1201000164
1.3/8-6BSW 200 56 SL1201000165
1.1/2-6BSW 200 56 SL1201000166
