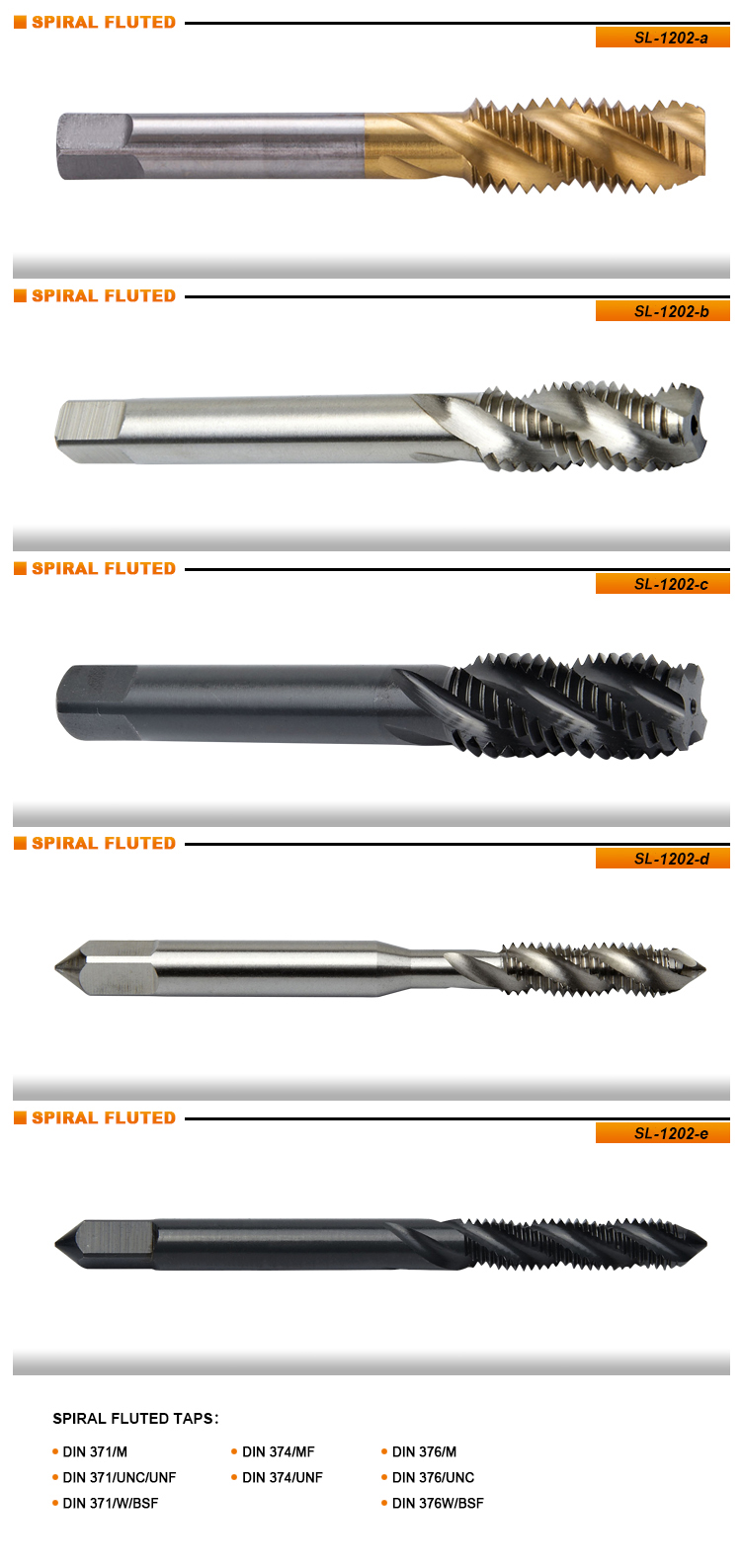

Spiral Flute Taps
  ■DIN317/M  SPIRAL FLUTED TAPS—High Speed Steel
ize Overall Length Thread Length Item No.
M2x0.4 45 8 SL1202000001
M2.2x0.45 45 9 SL1202000002
M2.5x0.45 50 9 SL1202000003
M3x0.5 56 11 SL1202000004
M3.5x0.6 56 13 SL1202000005
M4x0.7 63 13 SL1202000006
M5x0.8 70 16 SL1202000007
M6x1 80 19 SL1202000008
M7x1 80 19 SL1202000009
M8x1.25 90 22 SL1202000010
M9x1.25 90 22 SL1202000011
M10x1.25 100 24 SL1202000012
  ■DIN371/W/BSF SPIRAL FLUTED TAPS—High Speed Steel
Size Overall Length Thread Length Item No.
W1/16-60 40 8 SL1202000013
W3/32-48 50 9 SL1202000014
W1/8-40 56 11 SL1202000015
W5/32-32 63 13 SL1202000016
W3/16-24 70 15 SL1202000017
W7/32-24 80 16 SL1202000018
W1/4-20 80 17 SL1202000019
W5/16-18 90 20 SL1202000020
W3/8-16 100 22 SL1202000021
BSF3/16-32 70 15 SL1202000022
BSF1/4-26 80 17 SL1202000023
BSF5/16-22 90 20 SL1202000024
BSF3/8-20 100 22 SL1202000025
  ■DIN371/UNC/UNF  SPIRAL FLUTED TAPS—High Speed Steel
Size Overall Length Thread Length Item No.
No.1-64UNC 40 8 SL1202000026
No.2-56UNC 45 9 SL1202000027
No.3-48UNC 50 9 SL1202000028
No.4-40UNC 56 11 SL1202000029
No.5-40UNC 56 11 SL1202000030
No.6-32UNC 56 12 SL1202000031
No.8-32UNC 63 13 SL1202000032
No.10-24UNC 70 15 SL1202000033
No.12-24UNC 80 16 SL1202000034
1/4-20UNC 80 17 SL1202000035
5/16-18UNC 90 20 SL1202000036
3/8-16UNC 100 22 SL1202000037
No.0-80UNF 40 8 SL1202000038
No.1-72UNF 40 8 SL1202000039
No.2-64UNF 45 9 SL1202000040
No.3-56UNF 50 9 SL1202000041
No.4-48UNF 56 11 SL1202000042
No.5-44UNF 56 11 SL1202000043
No.6-40UNF 56 12 SL1202000044
No.8-36UNF 63 13 SL1202000045
No.10-32UNF 70 15 SL1202000046
No.12-28UNF 80 16 SL1202000047
1/4-28UNF 80 17 SL1202000048
5/16-24UNF 90 20 SL1202000049
3/8-24UNF 100 22 SL1202000050
  ■DIN374/MF  SPIRAL FLUTED TAPS—High Speed Steel
Size Overall Length Thread Length Item No.
M3x0.35 56 10 SL1202000051
M3.5x0.35 56 10 SL1202000052
M4x0.35 63 10 SL1202000053
M4x0.5 63 10 SL1202000054
M5x0.5 70 12 SL1202000055
M6x0.5 80 14 SL1202000056
M6x0.75 80 14 SL1202000057
M7x0.75 80 14 SL1202000058
M8x0.5 80 19 SL1202000051
M8x0.75 80 19 SL1202000052
M8x1 90 22 SL1202000053
M9x1 90 22 SL1202000054
M10x0.5 90 20 SL1202000055
M10x0.75 100 20 SL1202000056
M10x1 90 20 SL1202000057
M10x1.25 90 24 SL1202000058
M11x1 100 20 SL1202000059
M11x1.25 100 20 SL1202000060
M12x0.75 100 22 SL1202000061
M12x1 100 22 SL1202000062
M12x1.25 100 22 SL1202000063
M12x1.5 100 22 SL1202000064
M13x1 100 22 SL1202000065
M13x1.5 100 22 SL1202000066
M14x0.75 100 22 SL1202000067
M14x1 100 22 SL1202000068
M14x1.25 100 22 SL1202000069
M14x1.5 100 22 SL1202000070
M16x1 100 22 SL1202000071
M16x1.25 100 22 SL1202000072
M16x1.5 100 22 SL1202000073
M18x1 110 25 SL1202000074
M18x1.5 110 25 SL1202000075
M18x2 125 34 SL1202000076
M20x1 125 25 SL1202000077
M20x1.5 125 25 SL1202000078
M20x2 140 34 SL1202000079
M22x1 125 25 SL1202000080
M22x1.5 125 25 SL1202000081
M22x2 140 34 SL1202000082
M24x1 140 28 SL1202000083
M24x1.5 140 28 SL1202000084
M24x2 140 28 SL1202000085
M26x1.5 140 28 SL1202000086
M27x2 140 28 SL1202000087
M28x1.5 140 28 SL1202000088
M30x1.5 150 28 SL1202000089
M30x2 150 28 SL1202000090
M32x1.5 150 28 SL1202000091
M35x1.5 170 30 SL1202000092
M36x1.5 170 30 SL1202000093
M38x1.5 170 30 SL1202000094
M40x1.5 170 30 SL1202000095
M42x1.5 170 30 SL1202000096
M45x1.5 180 32 SL1202000097
M48x1.5 190 32 SL1202000098
M50x1.5 190 32 SL1202000099
M52x1.5 190 32 SL1202000100
  ■DIN374/UNF SPIRAL FLUTED TAPS—High Speed Steel
Size Overall Length Thread Length Item No.
1/4-28UNF 80 17 SL1202000101
5/16-24UNF 90 20 SL1202000102
3/8-24UNF 90 16 SL1202000103
7/16-20UNF 100 22 SL1202000104
1/2-20UNF 100 22 SL1202000105
9/16-18UNF 100 22 SL1202000106
5/8-18UNF 100 22 SL1202000107
3/4-16UNF 100 25 SL1202000108
7/8-14UNF 125 25 SL1202000109
1-12UNF 140 28 SL1202000110
1-1/8 - 12UNF 150 28 SL1202000111
1-1/4 - 12UNF 150 28 SL1202000112
1-3/8 - 12UNF 170 30 SL1202000113
1-1/2 - 12UNF 170 30 SL1202000114
  ■DIN376/M  SPIRAL FLUTED TAPS—High Speed Steel
Size Overall Length Thread Length Item No.
M3x0.5 56 11 SL1202000115
M4x0.7 63 13 SL1202000116
M5x0.8 70 16 SL1202000117
M6x1 80 19 SL1202000118
M7x1 80 19 SL1202000119
M8x1.25 90 22 SL1202000120
M9x1.25 90 22 SL1202000121
M10x1.5 100 24 SL1202000122
M11x1.5 100 24 SL1202000123
M12x1.75 110 29 SL1202000124
M14x2 110 30 SL1202000125
M16x2 110 32 SL1202000126
M18x2.5 125 34 SL1202000127
M20x2.5 140 34 SL1202000128
M22x2.5 140 34 SL1202000129
M24x3 160 38 SL1202000130
M27x3 160 38 SL1202000131
M30x3.5 180 45 SL1202000132
M33x3.5 180 50 SL1202000133
M36x4 200 56 SL1202000134
M39x4 200 60 SL1202000135
M42x4.5 200 60 SL1202000136
M45x4.5 220 65 SL1202000137
M48x5 250 70 SL1202000138
M52x5 250 70 SL1202000139
  ■DIN376/UNC/UNF  SPIRAL FLUTED TAPS—High Speed Steel
Size Overall Length Thread Length Item No.
1/4UNC 80 17 SL1202000140
5/16UNC 90 20 SL1202000141
3/8-16UNC 100 22 SL1202000142
7/16-14UNC 100 22 SL1202000143
1/2-13UNC 110 24 SL1202000144
9/16-12UNC 110 26 SL1202000145
5/8-11UNC 110 27 SL1202000146
3/4-10UNC 125 30 SL1202000147
7/8-9UNC 140 32 SL1202000148
1î-8UNC 160 36 SL1202000149
1-1/8-7UNC 180 40 SL1202000150
1-1/4-7UNC 180 40 SL1202000151
1-3/8-6UNC 200 50 SL1202000152
1-1/2-6UNC 200 50 SL1202000153
1/4-28UNF 80 17 SL1202000154
5/16-24UNF 90 20 SL1202000155
3/8-24UNF 90 16 SL1202000156
7/16-20UNF 100 22 SL1202000157
1/2-20UNF 100 22 SL1202000158
9/16-18UNF 100 22 SL1202000159
5/8-18UNF 100 22 SL1202000160
3/4-16UNF 110 25 SL1202000161
7/8-14UNF 125 25 SL1202000162
1î-12UNF 140 28 SL1202000163
1-1/8-12UNF 150 28 SL1202000164
1-1/4-12UNF 150 28 SL1202000165
1-3/8-12UNF 170 30 SL1202000166
1-1/2-12UNF 170 30 SL1202000167
  ■DIN376 W/BSF  SPIRAL FLUTED TAPS—High Speed Steel
Size Overall Length Thread Length Item No.
W3/8-16 100 22 SL1202000168
W7/16-14 100 22, SL1202000169
W1/2-12 110 24 SL1202000170
W9/16-12 110 26 SL1202000171
W5/8-11 110 27 SL1202000172
W3/4-10 125 30 SL1202000173
W7/8-11 140 32 SL1202000174
W1î-8 160 36 SL1202000175
W1-1/8-7 180 40 SL1202000176
W1-1/4-7 180 40 SL1202000177
W1-3/8-6 200 50 SL1202000178
W1-1/2-6 200 50 SL1202000179
W1-3/4-5 220 58 SL1202000180
W2î-4-1/2 250 65 SL1202000181
BSF1/4-26 80 17 SL1202000182
BSF5/16-22 90 20 SL1202000183
BSF3/8-20 100 22 SL1202000184
BSF7/16-18 100 22 SL1202000185
BSF1/2-16 110 24 SL1202000186
BSF5/8-14 110 27 SL1202000187
BSF3/4-12 125 30 SL1202000188
BSF7/8-11 140 32 SL1202000189
BSF1"-10 160 36 SL1202000190
