ISO

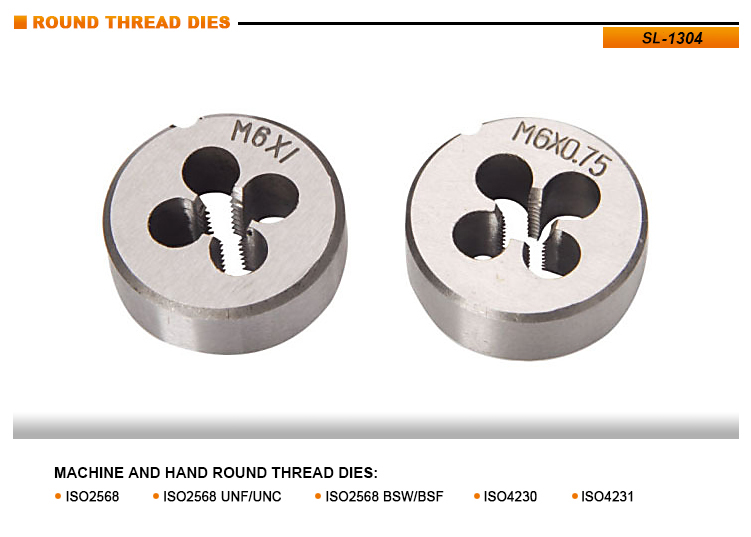

  ■ISO2568   MACHINE AND HAND ROUND THREAD DIES—High Speed Steel or Alloy Tool Steel
Size Outside Item No. (HSS) Item No. (9CrSi)
M1x0.2 16x5mm SL1304001001 SL1304002001
M1x0.25 16x5mm SL1304001002 SL1304002002
M1.1x0.2 16x5mm SL1304001003 SL1304002003
M1.1x0.25 16x5mm SL1304001004 SL1304002004
M1.2x0.2 16x5mm SL1304001005 SL1304002005
M1.2x0.25 16x5mm SL1304001006 SL1304002006
M1.4x0.2 16x5mm SL1304001007 SL1304002007
M1.4x0.3 16x5mm SL1304001008 SL1304002008
M1.6x0.2 16x5mm SL1304001009 SL1304002009
M1.6x0.35 16x5mm SL1304001010 SL1304002010
M1.8x0.2 16x5mm SL1304001011 SL1304002011
M1.8x0.35 16x5mm SL1304001012 SL1304002012
M2x0.25 16x5mm SL1304001013 SL1304002013
M2x0.4 16x5mm SL1304001014 SL1304002014
M2.2x0.25 16x5mm SL1304001015 SL1304002015
M2.2x0.45 16x5mm SL1304001016 SL1304002016
M2.5x0.35 16x5mm SL1304001017 SL1304002017
M2.5x0.45 16x5mm SL1304001018 SL1304002018
M3x0.35 20x5mm SL1304001019 SL1304002019
M3x0.5 20x5mm SL1304001020 SL1304002020
M3.5x0.35 20x5mm SL1304001021 SL1304002021
M3.5x0.6 20x5mm SL1304001022 SL1304002022
M4x0.5 20x5mm SL1304001023 SL1304002023
M4x0.7 20x5mm SL1304001024 SL1304002024
M4.5x0.5 20x5mm SL1304001025 SL1304002025
M4.5x0.75 20x7mm SL1304001026 SL1304002026
M5x0.5 20x5mm SL1304001027 SL1304002027
M5x0.8 20x7mm SL1304001028 SL1304002028
M5.5x0.5 20x5mm SL1304001029 SL1304002029
M6x0.75 20x7mm SL1304001030 SL1304002030
M6x1 20x7mm SL1304001031 SL1304002031
M7x0.75 25x9mm SL1304001032 SL1304002032
M7x1 25x9mm SL1304001033 SL1304002033
M8x0.75 25x9mm SL1304001034 SL1304002034
M8x1 25x9mm SL1304001035 SL1304002035
M8x1.25 25x9mm SL1304001036 SL1304002036
M9x0.75 25x9mm SL1304001037 SL1304002037
M9x1 25x9mm SL1304001038 SL1304002038
M9x1.25 25x9mm SL1304001039 SL1304002039
M10x0.75 30x11mm SL1304001040 SL1304002040
M10x1 30x11mm SL1304001041 SL1304002041
M10x1.25 30x11mm SL1304001042 SL1304002042
M10x1.5 30x11mm SL1304001043 SL1304002043
M11x0.75 30x11mm SL1304001044 SL1304002044
M11x1 30x11mm SL1304001045 SL1304002045
M11x1.5 30x11mm SL1304001046 SL1304002046
M12x1 38x10mm SL1304001047 SL1304002047
M12x1.25 38x10mm SL1304001048 SL1304002048
M12x1.5 38x10mm SL1304001049 SL1304002049
M12x1.75 38x14mm SL1304001050 SL1304002050
M14x1 38x10mm SL1304001051 SL1304002051
M14x1.25 38x10mm SL1304001052 SL1304002052
M14x1.5 38x10mm SL1304001053 SL1304002053
M14x2 38x14mm SL1304001054 SL1304002054
M15x1.5 38x10mm SL1304001055 SL1304002055
M16x1 45x14mm SL1304001056 SL1304002056
M16x1.5 45x14mm SL1304001057 SL1304002057
M16x2 45x18mm SL1304001058 SL1304002058
M17x1.5 45x14mm SL1304001059 SL1304002059
M18x1 45x14mm SL1304001060 SL1304002060
M18x1.5 45x14mm SL1304001061 SL1304002061
M18x2 45x14mm SL1304001062 SL1304002062
M18x2.5 45x18mm SL1304001063 SL1304002063
M20x1 45x14mm SL1304001064 SL1304002064
M20x1.5 45x14mm SL1304001065 SL1304002065
M20x2 45x14mm SL1304001066 SL1304002066
M20x2.5 45x18mm SL1304001067 SL1304002067
M22x1 55x16mm SL1304001068 SL1304002068
M22x1.5 55x16mm SL1304001069 SL1304002069
M22x2 55x16mm SL1304001070 SL1304002070
M22x2.5 55x22mm SL1304001071 SL1304002071
M24x1 55x16mm SL1304001072 SL1304002072
M24x1.5 55x16mm SL1304001073 SL1304002073
M24x2 55x16mm SL1304001074 SL1304002074
M24x3 55x22mm SL1304001075 SL1304002075
M25x1.5 55x16mm SL1304001076 SL1304002076
M25x2 55x16mm SL1304001077 SL1304002077
M27x1 65x18mm SL1304001078 SL1304002078
M27x1.5 65x18mm SL1304001079 SL1304002079
M27x2 65x18mm SL1304001080 SL1304002080
M27x3 65x25mm SL1304001081 SL1304002081
M28x1 65x18mm SL1304001082 SL1304002082
M28x1.5 65x18mm SL1304001083 SL1304002083
M28x2 65x18mm SL1304001084 SL1304002084
M30x1 65x18mm SL1304001085 SL1304002085
M30x1.5 65x18mm SL1304001086 SL1304002086
M30x2 65x18mm SL1304001087 SL1304002087
M30x3 65x25mm SL1304001088 SL1304002088
M30x3.5 65x25mm SL1304001089 SL1304002089
M32x1.5 65x18mm SL1304001090 SL1304002090
M32x2 65x18mm SL1304001091 SL1304002091
M33x1.5 65x18mm SL1304001092 SL1304002092
M33x2 65x18mm SL1304001093 SL1304002093
M33x3 65x25mm SL1304001094 SL1304002094
M33x3.5 65x25mm SL1304001095 SL1304002095
M35x1.5 65x18mm SL1304001096 SL1304002096
M36x1.5 65x18mm SL1304001097 SL1304002097
M36x2 65x18mm SL1304001098 SL1304002098
M36x3 65x25mm SL1304001099 SL1304002099
M36x4 65x25mm SL1304001100 SL1304002100
M39x1.5 75x20mm SL1304001101 SL1304002101
M39x2 75x20mm SL1304001102 SL1304002102
M39x3 75x30mm SL1304001103 SL1304002103
M39x4 75x30mm SL1304001104 SL1304002104
M40x1.5 75x20mm SL1304001105 SL1304002105
M40x2 75x20mm SL1304001106 SL1304002106
M40x3 75x30mm SL1304001107 SL1304002107
M42x1.5 75x20mm SL1304001108 SL1304002108
M42x2 75x20mm SL1304001109 SL1304002109
M42x3 75x30mm SL1304001110 SL1304002110
M42x4 75x30mm SL1304001111 SL1304002111
M42x4.5 75x30mm SL1304001112 SL1304002112
M45x1.5 90x22mm SL1304001113 SL1304002113
M45x2 90x22mm SL1304001114 SL1304002114
M45x3 90x36mm SL1304001115 SL1304002115
M45x4 90x36mm SL1304001116 SL1304002116
M45x4.5 90x36mm SL1304001117 SL1304002117
M48x1.5 90x22mm SL1304001118 SL1304002118
M48x2 90x22mm SL1304001119 SL1304002119
M48x3 90x36mm SL1304001120 SL1304002120
M48x4 90x36mm SL1304001121 SL1304002121
M48x5 90x36mm SL1304001122 SL1304002122
M50x1.5 90x22mm SL1304001123 SL1304002123
M50x2 90x22mm SL1304001124 SL1304002124
M50x3 90x36mm SL1304001125 SL1304002125
M52x1.5 90x22mm SL1304001126 SL1304002126
M52x2 90x22mm SL1304001127 SL1304002127
M52x3 90x36mm SL1304001128 SL1304002128
M52x4 90x36mm SL1304001129 SL1304002129
M52x5 90x36mm SL1304001130 SL1304002130
M55x1.5 105x22mm SL1304001131 SL1304002131
M55x2 105x22mm SL1304001132 SL1304002132
M55x3 105x36mm SL1304001133 SL1304002133
M55x4 105x36mm SL1304001134 SL1304002134
M56x1.5 105x22mm SL1304001135 SL1304002135
M56x2 105x22mm SL1304001136 SL1304002136
M56x3 105x36mm SL1304001137 SL1304002137
M56x4 105x36mm SL1304001138 SL1304002138
M56x5.5 105x36mm SL1304001139 SL1304002139
M60x5.5 105x36mm SL1304001140 SL1304002140
M64x6 120x36mm SL1304001141 SL1304002141
M68x6 120x36mm SL1304001142 SL1304002142
  ■ISO2568 UNF/UNC
 MACHINE AND HAND ROUND THREAD DIES—High Speed Steel or Alloy Tool Steel
Size Outside Item No. (HSS) Item No. (9CrSi)
No.0-80UNF 16x5mm SL1304003001 SL1304004001
No.1-64UNC 16x5mm SL1304003002 SL1304004002
No.1-72UNF 16x5mm SL1304003003 SL1304004003
No.2-56UNC 16x5mm SL1304003004 SL1304004004
No.2-64UNF 16x5mm SL1304003005 SL1304004005
No.3-48UNC 16x5mm SL1304003006 SL1304004006
No.3-56UNF 16x5mm SL1304003007 SL1304004007
No.4-40UNC 20x5mm SL1304003008 SL1304004008
No.4-48UNF 20x5mm SL1304003009 SL1304004009
No.5-40UNC 20x5mm SL1304003010 SL1304004010
No.5-44UNF 20x5mm SL1304003011 SL1304004011
No.6-32UNC 20x7mm SL1304003012 SL1304004012
No.6-40UNF 20x5mm SL1304003013 SL1304004013
No.8-32UNC 20x7mm SL1304003014 SL1304004014
No.8-36UNF 20x7mm SL1304003015 SL1304004015
No.10-24UNC 20x7mm SL1304003016 SL1304004016
No.10-32UNF 20x7mm SL1304003017 SL1304004017
No.12-24UNC 20x7mm SL1304003018 SL1304004018
No.12-28UNF 20x7mm SL1304003019 SL1304004019
1/4-20UNC 20x7mm SL1304003020 SL1304004020
1/4-28UNF 20x7mm SL1304003021 SL1304004021
5/16-18UNC 25x9mm SL1304003022 SL1304004022
5/16-24UNF 25x9mm SL1304003023 SL1304004023
3/8-16UNC 30x11mm SL1304003024 SL1304004024
3/8-24UNF 30x11mm SL1304003025 SL1304004025
7/16-14UNC 30x11mm SL1304003026 SL1304004026
7/16-20UNF 30x11mm SL1304003027 SL1304004027
1/2-13UNC 38x14mm SL1304003028 SL1304004028
1/2-20UNF 38x10mm SL1304003029 SL1304004029
9/16-12UNC 38x14mm SL1304003030 SL1304004030
9/16-18UNF 38x10mm SL1304003031 SL1304004031
5/8-11UNC 45x18mm SL1304003032 SL1304004032
5/8-18UNF 45x14mm SL1304003033 SL1304004033
3/4-10UNC 45x18mm SL1304003034 SL1304004034
3/4-16UNF 45x14mm SL1304003035 SL1304004035
7/8-9UNC 55x22mm SL1304003036 SL1304004036
7/8-14UNF 55x16mm SL1304003037 SL1304004037
1-11-8UNC 55x22mm SL1304003038 SL1304004038
1-11-12UNF 55x16mm SL1304003039 SL1304004039
1-1/8-7UNC 65x25mm SL1304003040 SL1304004040
1-1/2-12UNF 65x18mm SL1304003041 SL1304004041
1-1/4-7UNC 65x25mm SL1304003042 SL1304004042
1-1/4-12UNF 65x18mm SL1304003043 SL1304004043
1-3/8-6UNC 65x25mm SL1304003044 SL1304004044
1-3/8-12UNF 65x18mm SL1304003045 SL1304004045
1-1/2-6UNC 75x30mm SL1304003046 SL1304004046
1-1/2-12UNF 75x20mm SL1304003047 SL1304004047
1-3/4-5UNC 90x36mm SL1304003048 SL1304004048
2-4-1/2UNC 90x36mm SL1304003049 SL1304004049
2-1/4-4-1/2UNC 105x36mm SL1304003050 SL1304004050
2-1/2-4UNC 120x36mm SL1304003051 SL1304004051
2-3/4-4UNC 120x36mm SL1304003052 SL1304004052
  ■ISO2568 BSW/BSF
 MACHINE AND HAND ROUND THREAD DIES—High Speed Steel or Alloy Tool Steel
Size Outside Item No. (HSS) Item No. (9CrSi)
1/8-40BSW 20x5mm SL1304005001 SL1304006001
3/16-24BSW 20x7mm SL1304005002 SL1304006002
3/16-32BSF 20x7mm SL1304005003 SL1304006003
7/32-28BSF 20x7mm SL1304005004 SL1304006004
1/4-20BSW 25x9mm SL1304005005 SL1304006005
1/4-26BSF 25x9mm SL1304005006 SL1304006006
9/32-26BSF 25x9mm SL1304005007 SL1304006007
5/16-18BSW 25x9mm SL1304005008 SL1304006008
5/16-22BSF 25x9mm SL1304005009 SL1304006009
3/8-16BSW 30x11mm SL1304005010 SL13040060010
3/8-20BSF 30x11mm SL1304005011 SL1304006011
7/16-14BSW 30x11mm SL1304005012 SL1304006012
7/16-18BSF 30x11mm SL1304005013 SL1304006013
1/2-12BSW 38x14mm SL1304005014 SL1304006014
1/2-16BSF 38x10mm SL1304005015 SL1304006015
9/16-12BSW 38x14mm SL1304005016 SL1304006016
9/16-16BSF 38x10mm SL1304005017 SL1304006017
5/8-11BSW 45x18mm SL1304005018 SL1304006018
5/8-14BSF 45x14mm SL1304005019 SL1304006019
11/16-11BSW 45x18mm SL1304005020 SL1304006020
11/16-14BSF 45x14mm SL1304005021 SL1304006021
3/4-10BSW 45x18mm SL1304005022 SL1304006022
3/4-12BSF 45x14mm SL1304005023 SL1304006023
7/8-9BSW 55x22mm SL1304005024 SL1304006024
7/8-11BSF 55x22mm SL1304005025 SL1304006025
1-8BSW 55x22mm SL1304005026 SL1304006026
1-10BSF 55x22mm SL1304005027 SL1304006027
1-1/8-7BSW 65x25mm SL1304005028 SL1304006028
1-1/8-9BSF 65x25mm SL1304005029 SL1304006029
1-1/4-7BSW 65x25mm SL1304005030 SL1304006030
1-1/4-9BSF 65x25mm SL1304005031 SL1304006031
1-1/2-6BSW 75x30mm SL1304005032 SL1304006032
1-1/2-8BSF 75x30mm SL1304005033 SL1304006033
1-5/8-8BSW 75x30mm SL1304005034 SL1304006034
1-3/4-5BSW 90x36mm SL1304005035 SL1304006035
1-3/4-7BSF 90x36mm SL1304005036 SL1304006036
2-4-1/2BSW 90x36mm SL1304005037 SL1304006037
2-7BSF 90x36mm SL1304005038 SL1304006038
2-1/4-4BSW 105x36mm SL1304005039 SL1304006039
2-1/4-6BSF 105x36mm SL1304005040 SL1304006040
2-1/2-4BSW 120x36mm SL1304005041 SL1304006041
2-1/2-6BSF 120x36mm SL1304005042 SL1304006042
2-3/4-3-1/2BSW 120x36mm SL1304005043 SL1304006043
2-3/4-6BSF 120x36mm SL1304005044 SL1304006044
  ■ISO4230  MACHINE AND HAND ROUND THREAD DIES—High Speed Steel or Alloy Tool Steel
Size Outside Item No. (HSS) Item No. (9CrSi)
R-1/16 30x11mm SL1304007001 SL1304008001
R-1/8 30x11mm SL1304007002 SL1304008002
R-1/4 38x14mm SL1304007003 SL1304008003
R-3/8 45x18mm SL1304007004 SL1304008004
R-1/2 55x22mm SL1304007005 SL1304008005
R-3/4 55x22mm SL1304007006 SL1304008006
R1 65x25mm SL1304007007 SL1304008007
R1-1/4 75x30mm SL1304007008 SL1304008008
R1-1/2 90x36mm SL1304007009 SL1304008009
R2 105x36mm SL1304007010 SL1304008010
  ■ISO4231   MACHINE AND HAND ROUND THREAD DIES—High Speed Steel or Alloy Tool Steel
Size Outside Item No. (HSS) Item No. (9CrSi)
G1/16 25x9mm SL1304009001 SL1304010001
G1/8 30x11mm SL1304009002 SL1304010002
G1/4 38x10mm SL1304009003 SL1304010003
G3/8 45x14mm SL1304009004 SL1304010004
G1/2 45x14mm SL1304009005 SL1304010005
G5/8 55x16mm SL1304009006 SL1304010006
G3/4 55x16mm SL1304009007 SL1304010007
G7/8 65x18mm SL1304009008 SL1304010008
G1 65x18mm SL1304009009 SL1304010009
G1-1/4 75x20mm SL1304009010 SL1304010010
G1-1/2 90x22mm SL1304009011 SL1304010011
G1-3/4 105x22mm SL1304009012 SL1304010012
, G2 105x22mm SL1304009013 SL1304010013
G2-1/4 105x22mm SL1304009014 SL1304010014
